SOIL DISINFECTION BY WATER VAPOR, SIMOX AGRIVAP 2010, TRANSPORTED BY TRACTOR

Price
Query
(VAT 13% not included)

AGRICULTURAL SOIL DISINFECTION SYSTEM USING WATER VAPOR, SIMOX AGRIVAP 2010 WITH ALUMINUM CAMPANULES TRANSPORTED BY TRACTOR



Why use low-pressure steam?

On agriculture for disinfecting ground soil without using chemical products, especially in organic and responsible farming, farmer’s market gardening, seedling nurseries, greenhouses, horticulture, agronomic research institutes, compost preparation.







Gerador de vapor de baixa pressão SIMOX Tipo AGRIVAP "2010 CE"



Code No: 19954552



Steam production: 1,000 KG-Steam/hour
Steam temperature: 195 - 210°C

Heating power: 785 KW

Heating power: 675,000 KCAL/hour

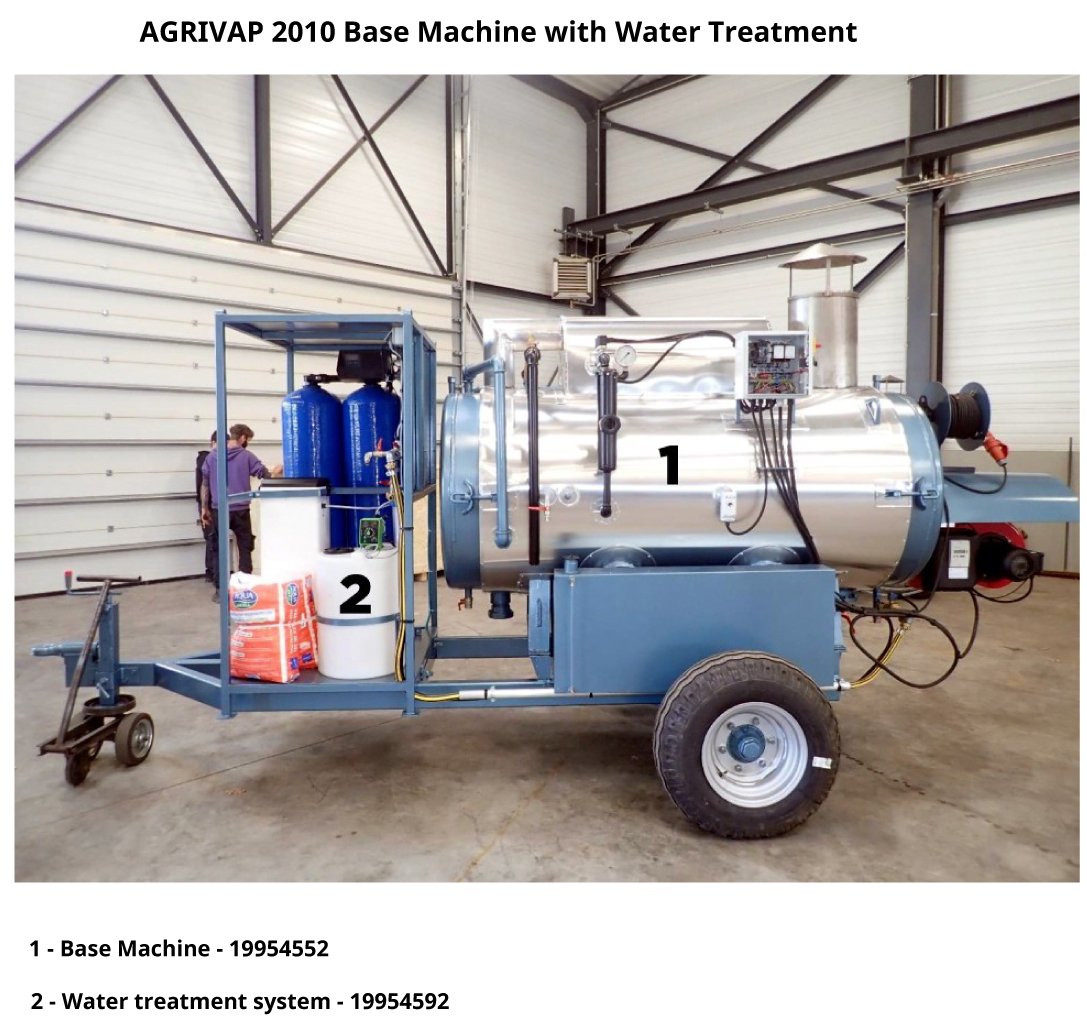

Base Machine




Composed by:


- 1 Automatic Burner: Weishaupt:WML10-4-EXT

   3 Stages - 400 V-Tri
   FOD consumption: 71.5 kg/h (i.e. 85.8 l/h)
- 1 burner steel protective cover
- 1 New generation heat exchangers
- 1 Filter (domestic fuel oil) to protect the burner from clogging
- 1 Water level regulator with stainless steel electrodes (5), with bottle-type water
   shortage safety device.
- 1 Water level sight glass: Pyrex porthole - Ø 70 mm.
- 1 Burner control pressure switch - cut at 0.5 bar
- 2 2nd and 3rd speed switches - Power regulation at 0.38 and 0.42 bar
- 1 control box including: 1 main switch
   1 Burner on/off switch 2 Water level control relay 1 1 "Power on" indicator light
- 1 Water supply solenoid valve: 209/20/MG – 3/4- Mono. 220 V. with filter, nonreturn valve and Express 3/4

   connection
- 1 steam pressure gauge: 0/1 bar - Ø 100 mm - STAINLESS STEEL
- 1 "Sunstroke" safety device by thermostat: RAK ST 1300 P
- 2 bronze safety valves: 1-1/2" with discharge tube
- 3 Drain valves - Steam B/S - full passage
- 5 Inspection and descaling hatches in the heating body
- 2 hinged pre-heater openings, giving access to the inside of the machine on both sides
- 1 Steam super heater for steam at 195-200°C
- 1 Chimney - Ø 342 mm and chimney cover
- 1 Double steam outlet with T: 3" - F. with 2 valves in DN80 and 2 male SIAMEC D89 connectors
- 1.600 liter fuel tank installed on the chassis -
- 1 sacrificial anode to protect the boiler against corrosion caused by aggressive water
   with very low resistivity (less than 2,500 ohms/cm).
- 1 Insulation of the central heating body
- 1 mobile chassis with two wheels: 10.0/75-15.3-10PR-AW909 + 1 foot + 1 swivel frame
- 1 Reel with electric cable 5 x1.5 of 50 meters

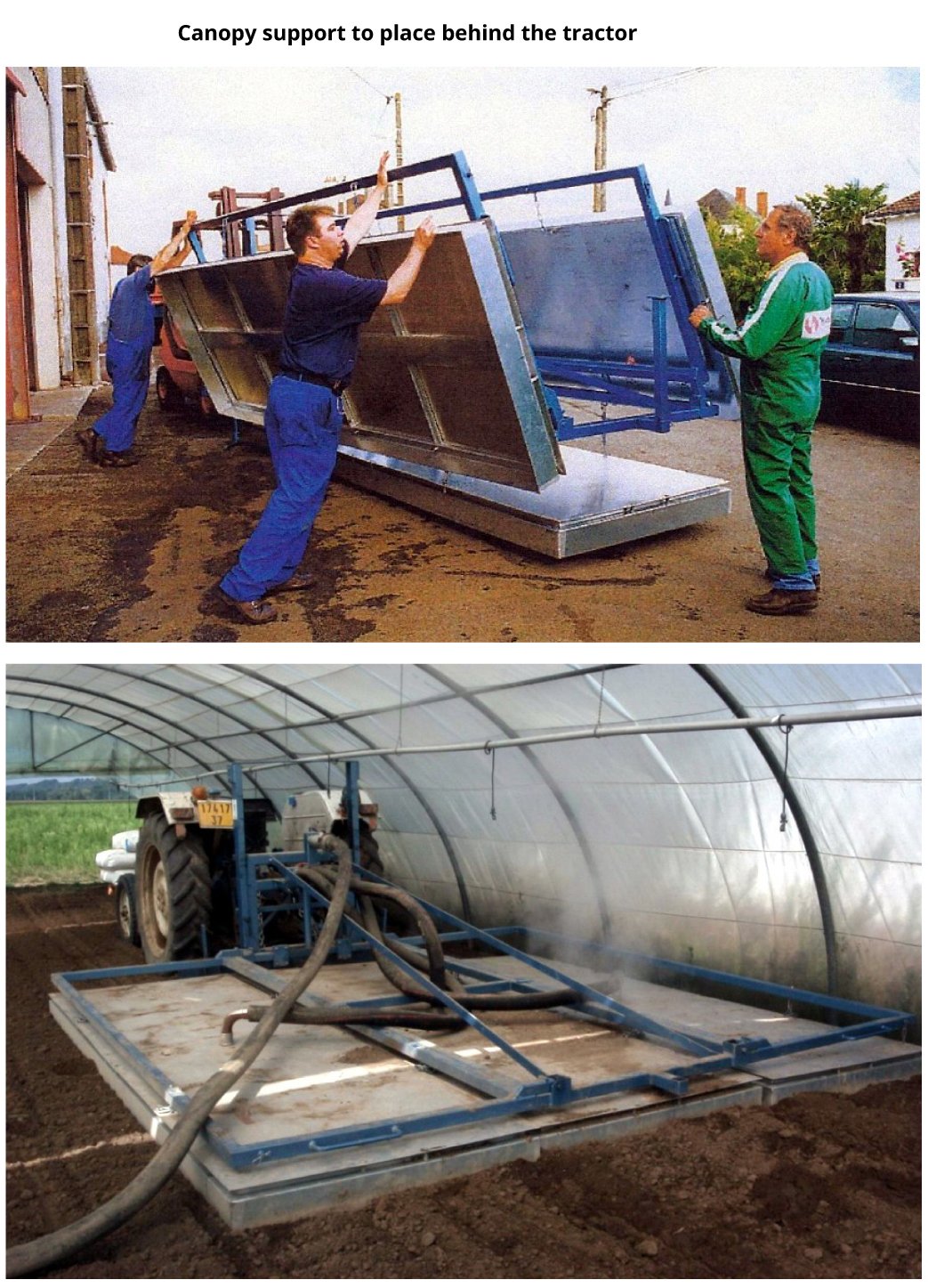

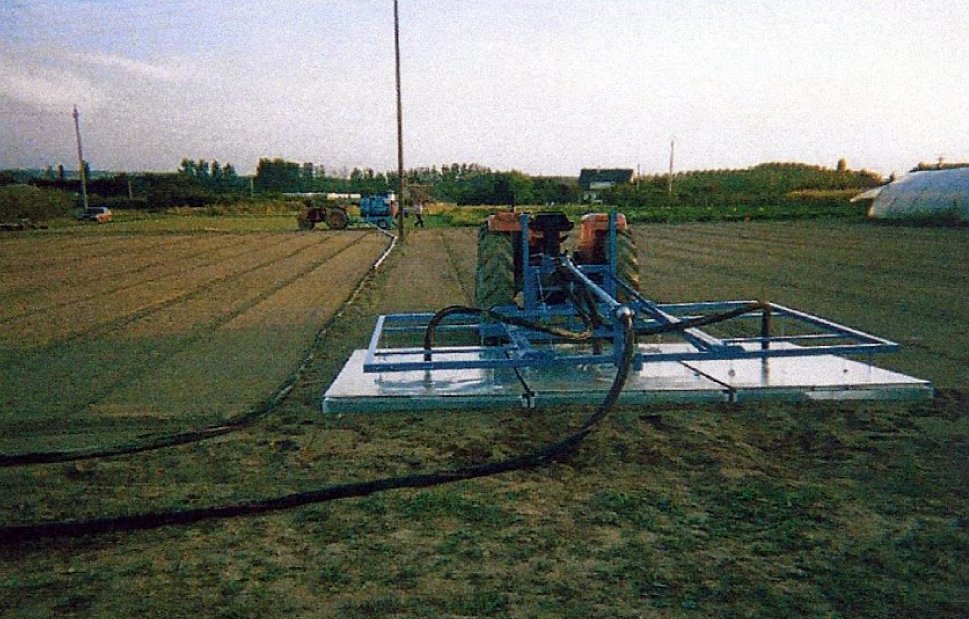

Châssis monté aux 3 points du tracteur avec 3 cloches


N° Code : 19954571


1 Structure avec relevage hydraulique pour les 3 points du tracteur à transporter 3 Capots avec :


Cloches suspendues par des chaînes
1 Distributeur de vapeur équipé de 3 sorties D50 et 3 vannes mâles et entrée Siamec D89.
   Distribution de vapeur par 3 tubes vapeur D50.
1 Système hydraulique de levage des cloches, entraîné par l'hydraulique du tracteur du client.

1 Support coulissant avec 4 galets de guidage en UPN et élévation avec vérins et tube de raccordement hydraulique.

1 Châssis pour fixer 3 Hottes pour une surface de travail de 2666 x 7500
Levage manuel des cloches Décompacteur / Effacetraces de roue



Conduite de vapeur pour le raccordement du générateur - distributeur de vapeur


20 mètres de tuyau vapeur D80 avec 2 raccords femelles SIAMEC pour relier le distributeur de vapeur et la chaudière.

N° Code : 19954758


1 Rallonge de 20 mètres de tuyau vapeur en D80 avec 1 raccord mâle SIAMEC et 1 femelle D89 pour
rallonger la distance entre le distributeur de vapeur et la chaudière.

N° Code : 19954554

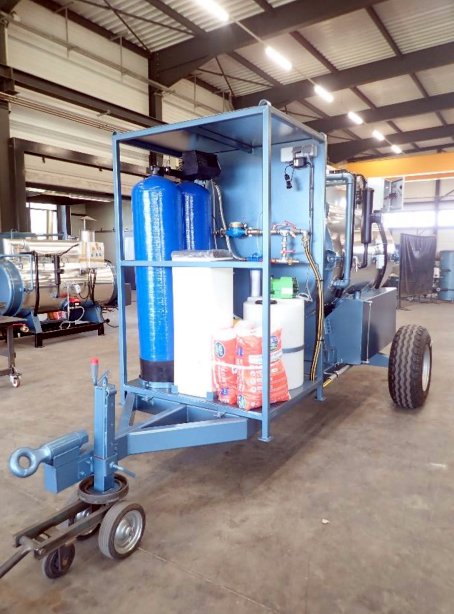

Simox water treatment unit



No. Code 19954592


1 Water treatment unit, with:


1 Cartridge filter - Elimination of MES to protect the water softener

1 Duplex volumetric descaler 2x30 liters
1 Automatic dosing unit for product injection. 1 Set mounted on the generator frame
1 Commissioning of the treatment system - Not included 1 Training of operating personnel - Not included

Consumables: 1st load not included


1 Consumables: 1st charge for water treatment:


 2 bags of salt: 2x 25 kg = 50 kg


1 Consumables: 1st charge for water treatment:


 Dosing product PH –SOLUVAP 419: 75Kg i.e. 3 cans of 25 Kg


Test equipment for monitoring water treatment setups including:


1 TH water test kit ref 1KT001
1 test kit for sulphites in water ref 1KS003



2 - Water treatment system






Steam generators - Type AGRIVAP bear the "CE" marking, in application of the directives of the
following European countries:

Machinery Directive 2006/42/EC: Low
Voltage Directive 2006/95/EC
Electromagnetic Compatibility Directive 2004/108/CE

Soil disinfection


With SIMOX low-pressure steam generators, the principal is to bring the ground to a temperature high enough to destroy a maximum amount of parasites and weeds while respecting the micro organisms useful for cultivation.

Why use low-pressures steam for disinfecting ground soil, but also for disinfecting the substratum like planting soil and composts?



Polyvalent, quick and effective:  insects, larvae and particularly pathogenic seeds of cryptogamic diseases are destroyed.  The low-pressure steam is extremely efficient, contrary to selective chemical products.  Here are several uses for the disinfecting of ground soil using low-pressure steam generators:



  • Weed-killing treatment
  • Fungicidal treatment
  • Nematicidal treatment
  • Insectidal treatment
  • Anti-viral treatment



A healthy and natural method:  no toxic residue left in the ground, nor in the harvested products, disinfecting the ground soil with steam plays an important role in the fight against pollution and the return to an improved biological balance.



It is possible to plant new seeds immediately at the end of the steam disinfecting process.



Advantages and benefits on the ground soil from the heat treatment:



  • Improved assimilation of elements by the soil.
  • Respect for bacterial activity, as the temperature does not go above 90°C.



Effects on the germination, favorable actions on the health and balance of the plants:



  • More developed root systems
  • Higher level of chlorophyll
  • Regularity and luxuriance of the vegetation



100% weed-killing:  Roots and seeds of the weeds are scorched thanks to the steam vapor.  Weeds are eliminated.

19954552
TOWED LOW PRESSURE STEAM GENERATOR BRAND: SIMOX MODEL: AGRIVAP 2010 CE/ 1000 KG STEAM/HOUR
39,500.00 €



19954571
CHASSIS WITH HYDRAULIC LIFTING MOUNTED TO THE 3 POINTS OF THE TRACTOR FOR HANDLING ALUMINUM CAMPANULES FOR A TOTAL WORKING WIDTH OF 7.50 M + 30 M STEAM TUBE BRAND: SIMOX MODEL: P/ AGRIVAP 2010 CE
16,765.00 €



19954758
20 M TUBE KIT FOR D.80 WATER VAPOR WITH 2 SIAMEC COUPLINGS BRAND: SIMOX MODEL: FOR AGRIVAP 2010 CE
2730.00 €



19954554
EXTENSION OF THE 20 M WATER STEAM TUBE WITH MALE COUPLING D.80 AND FEMALE COUPLING D.89 BRAND: SIMOX MODEL: MALE D.80/FEMALE D.89 - 10 M TUBE
2705.00 €



Optional Equipment:



19954592
COMPLETE EQUIPMENT FOR WATER TREATMENT WITH 1 CONSUMABLES KIT BRAND: SIMOX MODEL: P/ AGRIVAP 2010
6150.00 €



TRANSPORT FRANCE - PORTUGAL
3000.00 €



DEADLINE:
UP TO 90 DAYS AFTER ORDER CONFIRMATION
