GPS OLIVE & VINE PLANTING MACHINE WAGNER IPS-DRIVE PP

Price
Query
(VAT 13% not included)

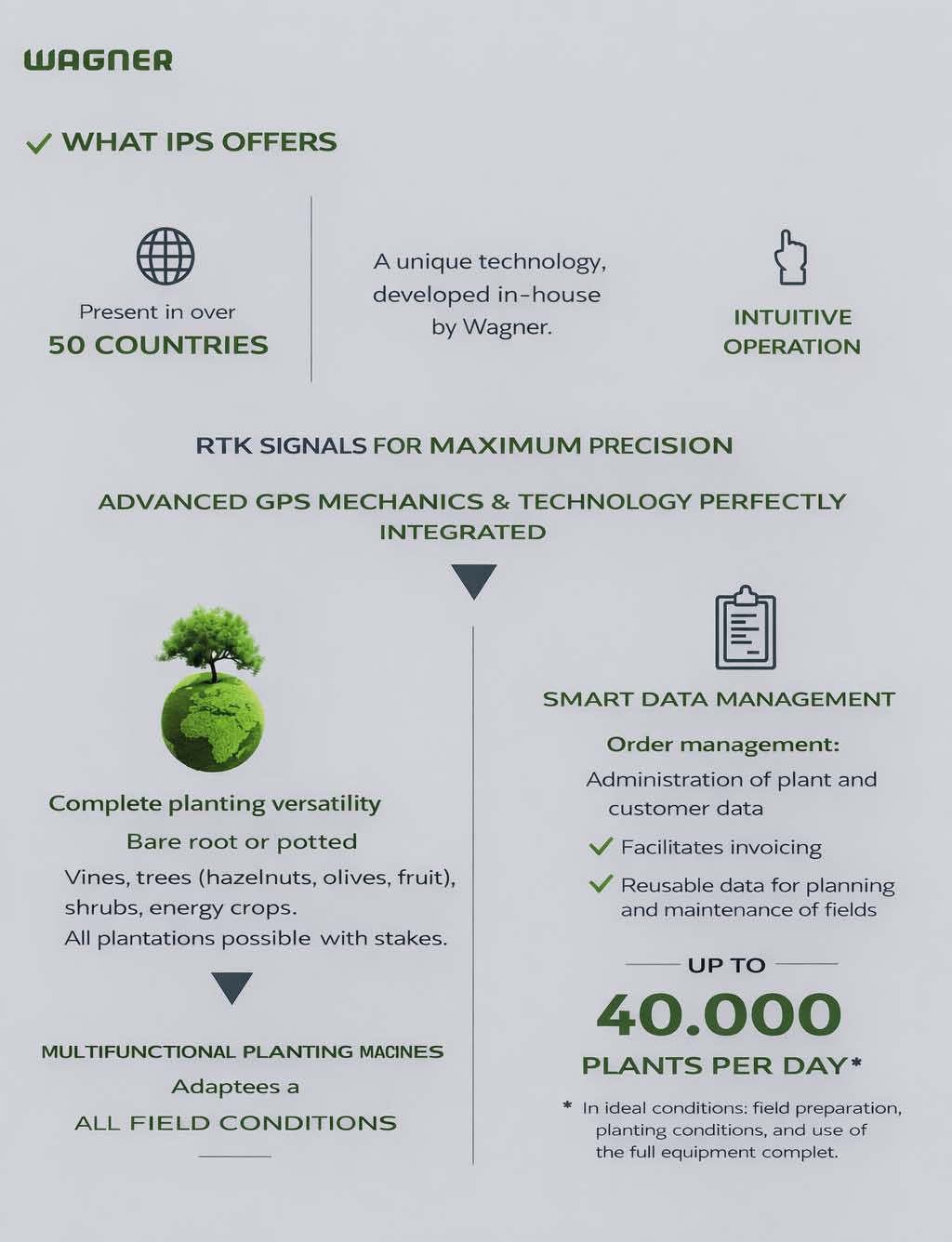

WAGNER IPS – TOTAL PRECISION IN PROFESSIONAL PLANTING

Discover the planting technology that is revolutionizing modern agriculture. The Wagner IPS system combines innovation, precision, and efficiency to deliver superior results in all types of planting.

Present in over 50 countries, this exclusive technology, developed in-house by Wagner, ensures reliable and proven performance worldwide.


🚀 Maximum precision with RTK technology

With high-precision RTK signal, the IPS system guarantees perfect alignment and अत्य precise planting, reducing errors and improving overall crop quality.

✔ Robust mechanics + latest-generation GPS technology
✔ Millimeter-level planting precision
✔ Consistent results in any terrain


🌱 Versatility for all types of crops

Adapted for various types of plantations:

  • Vineyards
  • Olive groves
  • Fruit trees
  • Shrubs and energy crops

Compatible with bare-root or potted plants, offering total flexibility in the field.


⚙️ Multifunctional machines for any terrain

Wagner planters are designed to perform in all conditions:

✔ Flat or sloped terrain
✔ Different soil types
✔ Small or large-scale agricultural projects


📊 Smart management and full control

Optimize your entire operation with an integrated management system:

✔ Order management
✔ Plant and customer data administration
✔ Reusable data for planning and maintenance

More control, better organization, and higher profitability.


🔥 Impressive productivity

Under ideal conditions, the system can achieve up to:

40,000 plants per day

➡ Faster operations
➡ Lower operating costs
➡ Higher return on investment


💡 Why choose Wagner IPS?

✔ Internationally proven technology
✔ High precision and efficiency
✔ Reduced errors and costs
✔ Increased productivity
✔ Professional solution for modern agriculture


👉 Invest in precision. Invest in the future.

Take your agricultural operation to the next level with Wagner IPS technology.





Description

The IPS Drive PP machine is suitable for planting permanent crops (e.g., vineyards).
It enables efficient operation and can be optimized with additional options.
Hydraulic system with proportional technology.


Technical Data

  • Tractor power: from 88 kW (120 hp)
  • Weight: approx. 2000 kg
  • Dimensions: 3460 x 2300 x 2350 mm
  • Planting accuracy: +/- 20 mm (more precise than the PL)
  • Plant spacing: from 800 mm
  • Row spacing: from 1200 mm
  • Depth: up to 400 mm
  • Slope compensation: up to 25%
  • Side slope compensation: up to 23%
  • Working speed: up to 4.3 km/h
  • PTO (power take-off) included
  • Independent hydraulic system (double pump)
  • 24V alternator

Mechanical Version (main advantages compared to PL)

  • Servo-electric system (more advanced)
  • Automatic slope compensation
  • Fully electro-hydraulic adjustments (depth, height, angle)
  • Lateral displacement measuring system
  • Additional rear coulters
  • Fully autonomous system (onboard oil + power supply)

Control System

  • RTK with higher precision (20 Hz)
  • Multi-frequency radio modem (NTRIP)
  • Robust GNSS antenna
  • 8” touch monitor
  • Industrial PC with WiFi / BT / 4G
  • Visual indicator for the operator (Drive Indicator)
  • Working light

Included Software

  • Row and plant spacing configuration
  • Modes: rectangular and sloped
  • Order management
  • Multiple languages

Additional Software

IPS PRO PLUS

Includes:

  • Free updates
  • Extended support (2 years)

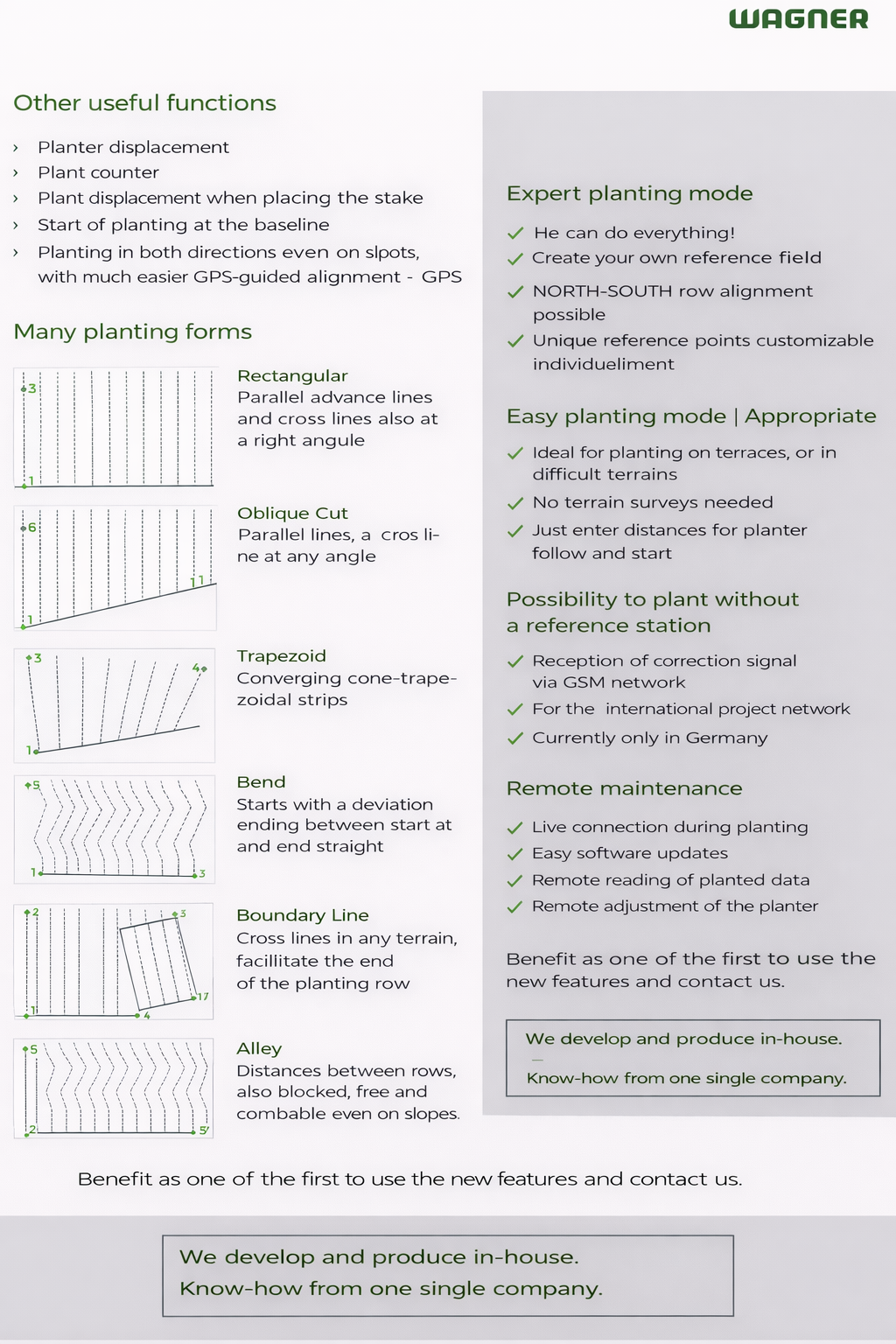

  • Advanced planting modes (trapezium, boundary lines, etc.)
  • Network correction via NTRIP

Optional Equipment

  • Foot pedal for depth control + shifting arm
