FERRARI FUTURA TWIN TRANSPLANTER

Price
Query
(VAT 13% not included)
Observation:
PRICES WITHOUT TRANSPORT
AUTOMOTIVE MODEL

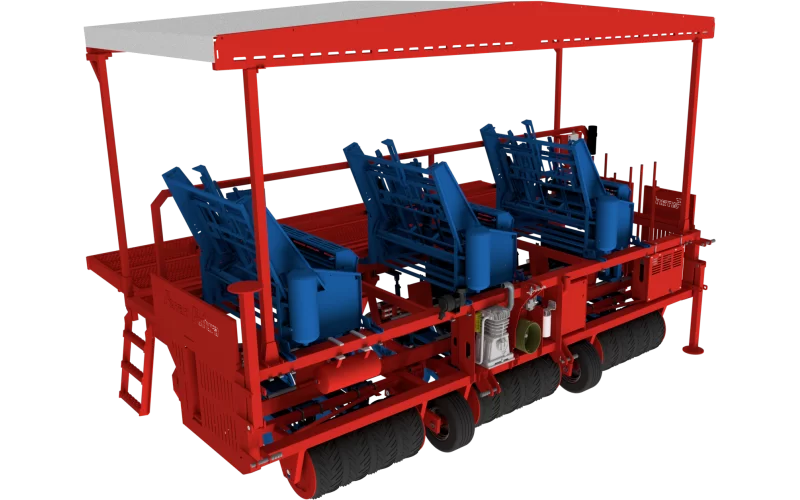

Futura is an automatic machine that has been studied for the transplant of vegetables in modules in trays.
It needs exclusively one operator who puts the single planting element inside the changing slide of the tray.
The machine extracts the seedlings automatically by means of a system based on cylindrical shaped plungers which diameter may vary according to the holes on the lower part of the tray to be used. The plants will be caught by moving grippers that will place them into the carousel. No need to change the tray the customer is used to work with, on the contrary the machine will be adapted accordingly: this is one of the features that render Futura a totally innovative machine.

- Working capacity: up to 8,000 plants / hour / row

- High suitability for the tray in commerce

- Device for the control and elimination of the missing plant from the tray to the transplant with a system of selecting control before the download in the container. Multiple readings up to 11 plants in succession with memorization, discrimination and replacement with a mechanical device for recovery of empty container

- High tolerance for different grounds

PLANTER FUTURA FUTURA TWIN - VERSION TOWING

FUT6017 PLANTER FUTURA TWIN CHASSIS "A" 2500 mm - 1 ROBOT + 2 LINES

FUT6018 PLANTER FUTURA TWIN CHASSIS "A" 2500 mm - 2 ROBOT + 4 LINES

FUT6019 PLANTER FUTURA TWIN CHASSIS "C" 5200 mm - 3 ROBOT + 6 LINES

FUT6029 PLANTER FUTURA TWIN CHASSIS "C" 5200 mm - 4 ROBOT + 8 LINES
(With battery and alternator)

FUT6020 PLANTER FUTURA TWIN CHASSIS "C" 5200 mm - 4 ROBOT + 8 LINES
(Full Timone, alternator and battery)

FUT6021 PLANTER FUTURA TWIN CHASSIS "C" 5200 mm - 5 ROBOT + 10 LINES
(Full Timone, alternator and battery)
Complete with cardan:
- Cowling
- Power kit
- Twinned wheels 580x80mm or 450x80mm Flex depending on the distance between rows)


PLANTER FUTURA FUTURA TWIN - VERSION AUTOMOTIVE

FUT6022 PLANTER AUTOMOTIVE FUTURE TWIN - 1 ROBOT + 2 LINES
- 4 drive wheels 7:50 / 18,860 x 200 mm
- Engine Kubota 67 hp
- Segas hydraulic with wheel
- 1250 mm Flex roll with tuning system of roller pressure
- Wheels press Flex 450 x 80 mm or 280 x 65 mm
- Working speed up to 6 km / h - Drive tronic

FUT6023 PLANTER AUTOMOTIVE FUTURE TWIN - 2 + 4 ROBOT LINES
- 4 drive wheels 7:50 / 18,860 x 200 mm
- Engine Kubota 67 hp
- Segas hydraulic with wheel
- 2 rolls Flex 1000 mm with roller pressure tuning system
- Wheels press Flex 450 x 80 mm or 280 x 65 mm
- Working speed up to 6 km / h - Drive tronic

FUT6024 PLANTER AUTOMOTIVE FUTURE TWIN - 3 ROBOT + 6 LINES
- 4 drive wheels 7:50 / 18,860 x 200 mm
- Engine Kubota 67 hp
- Segas hydraulic with wheel
- 3 Rolls Flex 1000 mm with roller pressure tuning system
- Wheels press Flex 450 x 80 mm or 280 x 65 mm
- Working speed up to 6 km / h - Drive tronic

FUT6025 PLANTER AUTOMOTIVE FUTURE TWIN - 4 ROBOT + 8 LINES
- 4 drive wheels 7:50 / 18,860 x 200 mm
- Engine Kubota 67 hp
- Segas hydraulic with wheel
- Flex roll of 3000 mm with roller pressure tuning system
- Wheels press Flex 450 x 80 mm or 280 x 65 mm
- Working speed up to 6 km / h - Drive tronic

FUT6026 PLANTER AUTOMOTIVE FUTURE TWIN - 5 ROBOT + 10 LINES
- 4 drive wheels 7:50 / 18,860 x 200 mm
- Engine Kubota 67 hp
- Blind hydraulic with wheel
- 5 Roll Flex 1000 mm with roller pressure tuning system
- Wheels press Flex 450 x 80 mm or 280 x 65 mm
- Working speed up to 6 km / h - Drive tronic
