INDUSTRIAL WEIGHING PLATFORM 1500 X 1500 CACHAPUZ PRM-Cla + D70E + PRINTER

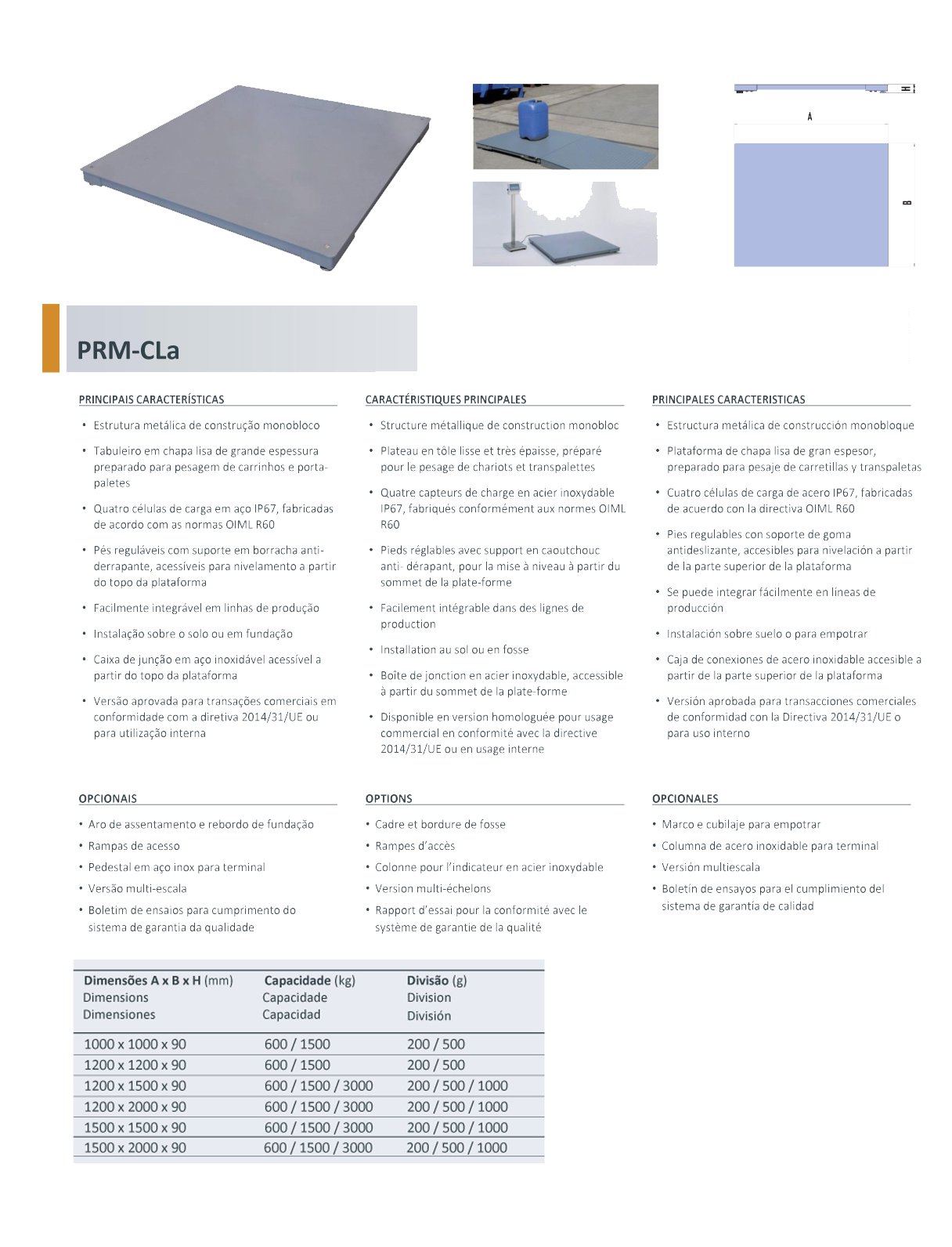

PRM-CLa Industrial Weighing Platform
Range: 1500 kg; Division: 500 g; Dimensions: 150x150cm

Main Feature:

Metallic structure in iron of monoblock construction, reinforced to be able to withstand loads greater than its maximum capacity.
5mm thick smooth plate tray, prepared for weighing trolleys and pallet trucks.
Four IP67 nickel-plated steel load cells, manufactured in accordance with OIML R60 standards.
Adjustable stainless steel feet with non-slip rubber support, accessible for leveling from the top of the platform
Minimum height 9cm and maximum height 13cm.
Easily integrated into production and control lines.
Installation on the ground or on a foundation.
Stainless steel junction box accessible from the top of the platform.
Version approved for commercial transactions in compliance with directive 2014/31/EU or for internal use.

Electronic Terminal D70E

Code: 901106940003

It is an electronic terminal that was developed for general applications. It is equipped with an LED technology display and membrane keyboard, offering an excellent quality/price ratio. Particularly suitable for small and medium weighings where a highly legible display is required. Very versatile use and can be powered by batteries.

Functional Features:

Red LED display with 7 segments and 6 digits (h= 20mm)
ABS box
Front panel protection: IP65
Piece counting function
Power: 220V with external power supply
1 RS232 outputs with possibility of connection to PC, printer, remote displays, radio transmission and possibility of configuring one of the ports as RS485
Functioning as a weight repeater
View of: GROSS weight and NET weight
Heavy or predetermined tare function
1 Ethernet Output
Zero
self test
Battery charge state signaling (if installed)

)
