ELEVATOR PLATFORM ATI PICCOLO POMARES AGROTECH

Price
Query
(VAT 13% not included)
Observation:
Transport not included in the price

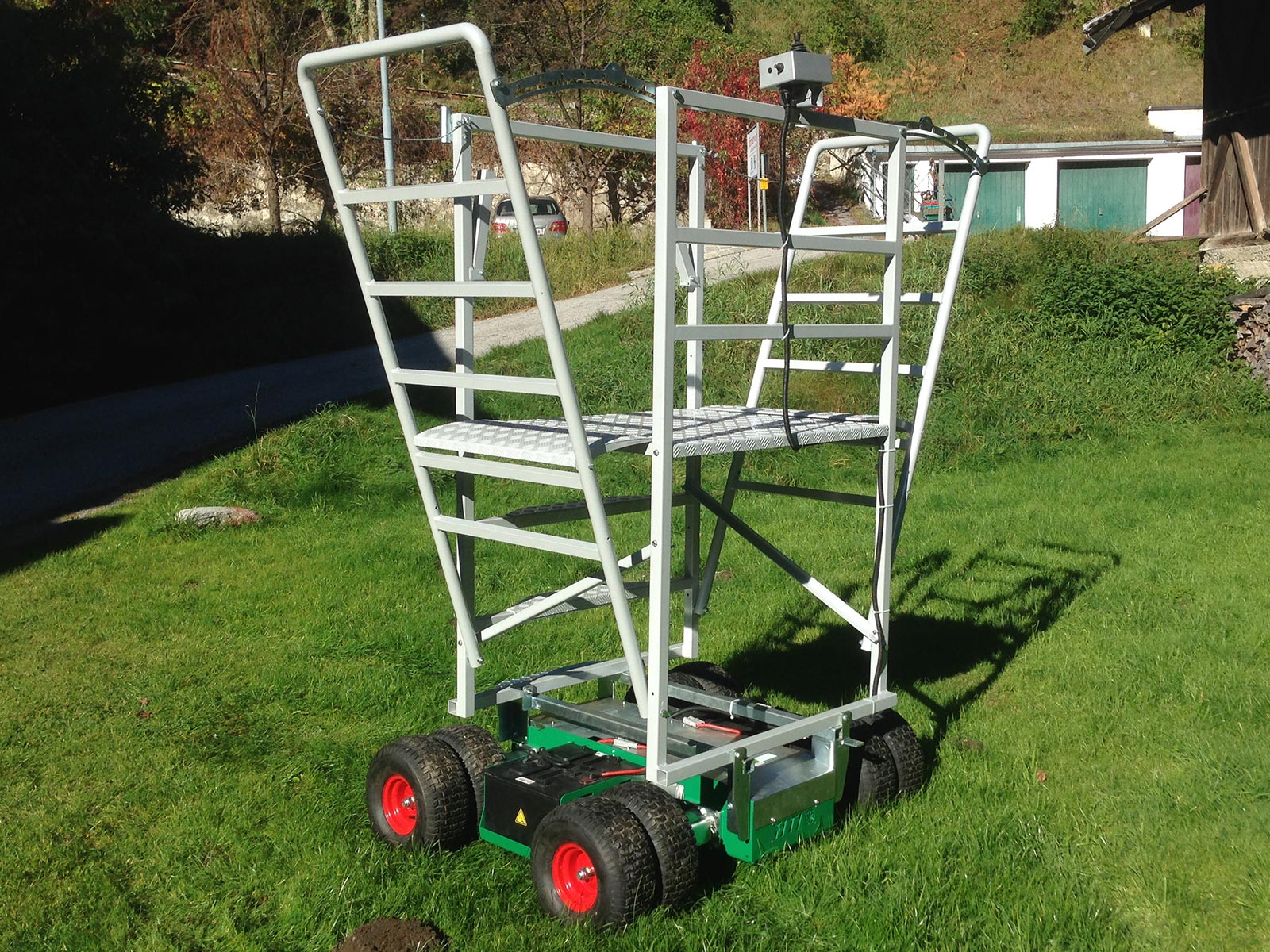

The multipurpose electric transport and harvesting machine
ATI Piccolo is a multipurpose transport and harvesting machine. The Piccolo can be used by up to 4 people for the harvest and for a maximum of 2 people to prune and maintain the tree at the same time.
ATI Piccolo's state-of-the-art electronic control has been specially designed according to the requirements of modern fruit cultivation and is ideal for all the activities required. With its great versatility, the ATI Piccolo is a true all-terrain with an excellent cost-performance ratio.
the ATI Piccolo is ideal for 4 to 5 people: 2 people working on the two stairs, 2 people working at ground level plus one person next door
the fruit tree can be harvested from top to bottom in a single pass
all fruit pickers are always close to the main fruit box - so the distance from the fruit tree to the box is short
the ATI Piccolo can carry 2 empty fruit boxes - so fruit pickers can work independently for several hours without having to organize a new supply of empty boxes
with the use of the ATI Piccolo ladders, fruit pickers have more flexibility and can easily move to the ground if the tree canopy has already been harvested and vice versa
quick change of batteries - this ensures that the machine is always ready for use
Motors: 2 DC motors, rated power of 1.1 KW each
Brakes: electromechanical brake through a worm gear system
Direction: skid direction through joystick
Batteries: 2 x 12V dry batteries 110Ah each, weight 35 kg
Battery charger: standard 10 A electronically controlled; Charging time: 10 - 12 hours
Driving speed: Variable continuously from 0 to 3 km / h
Climbing performance: max. 25%
Weight: empty 400 kg
Maximum payload: 200 kg - 2 people on board
Tires: 15 x 600 x 6
Working platform: Length: 0,80 m, Witdth: 2,10 m
Working height: min. 1,30 m high
Total length: 1.20 m; incl. transport device 1,40 m
Overall Width: 1.40 m
