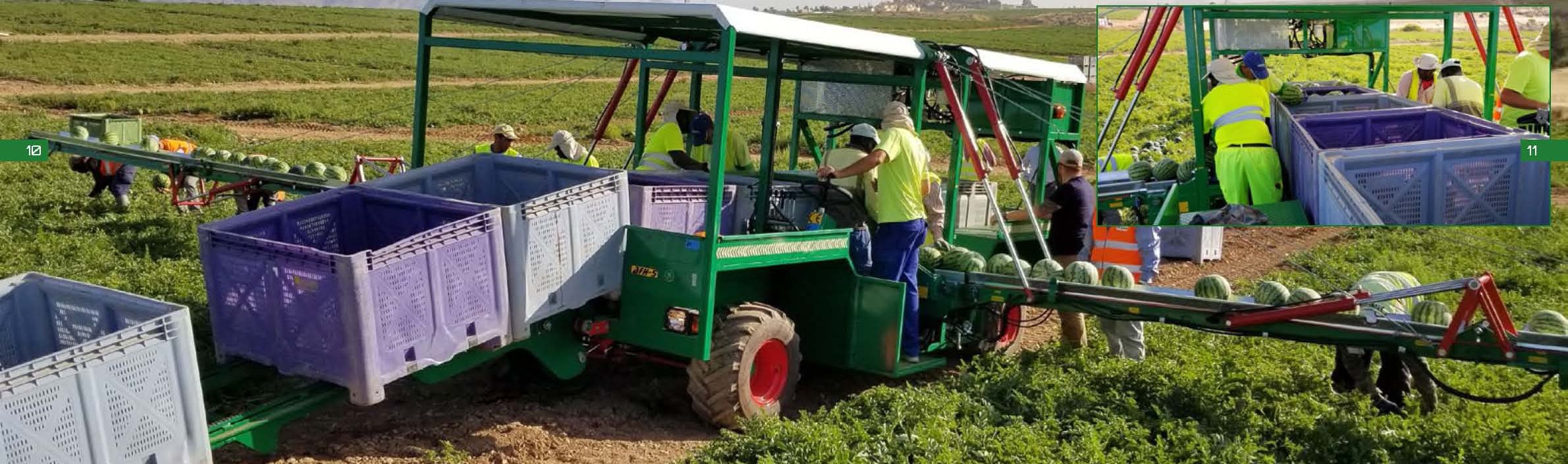

AUTOMOTIVE HARVESTER OF WATERMELONS, MELONS AND SIMILAR ARGILES AFH 5

Automotive Watermelon, Melon and Similar Harvester
Brand: ARGILES
Model: AFH-5

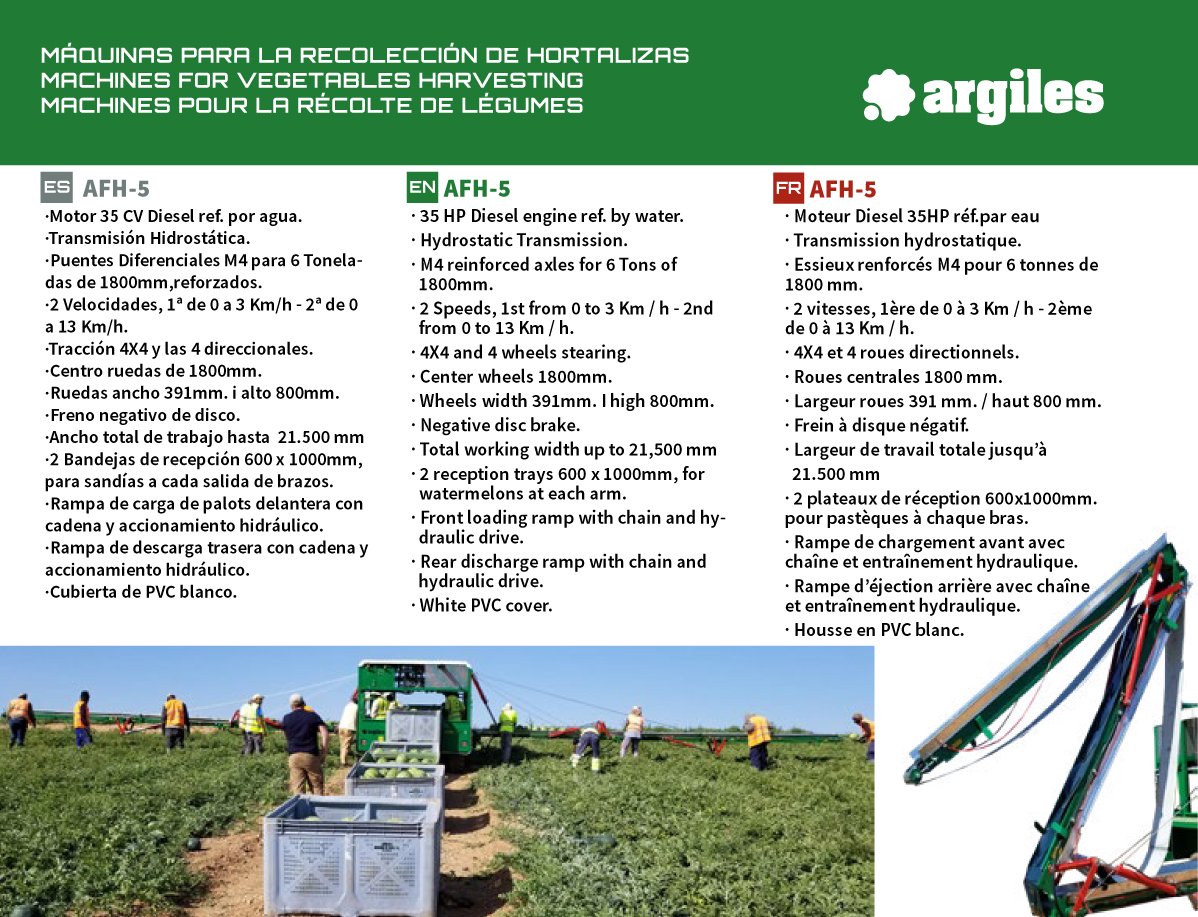

General Equipment Features:

· Diesel engine with a power of 35 C.V with water cooling.
· Hydrostatic transmission.
. Differential Bridges M4 for 6 Tons of 1800mm, reinforced.
. 2 Speeds: 1st from 0 to 3 km/h 2nd from 0 to 13 km/h.
· 4RM and 4-way traction.
· 1800mm central wheels.
· Wheels 391 mm wide and 800 mm high.
· Negative disc brake.
. Total working width up to 21,500 mm through folding side mats for road transport
. 2 reception trays 600 x 1000mm, for watermelons and melons at each output of the arms.
. Front loading ramp with chain and hydraulic drive.
· Rear discharge chute with chain and hydraulic drive.
· White PVC parasol cover.

General Technical Feature:

Average filling time of 1 pallet: 45 seconds to 1 minute
Average yield per hour: 60
Number of operators in the work zone: 8 ( 4 on the left + 4 on the right )
Number of operators driving: 1
Effective working width: 21.5 meters
Transport dimensions by truck or by ship: 5600 x 2530 x h2400 mm

Total Weight - Standard Machine: 4660 kg
