AUTOMOTIVE ROBOT BY RADIO CONTROL HYMACH HERBY-HY 50C LE COMPACT

Price

Query

(VAT 13% not included)

Categories::

FORESTRY
Brands:

HYMACH
Available by order
SKU::

HERBY-HY 50C
PDF catalog:
Hymach Catalogo 2021 PT.pdf

Observation:

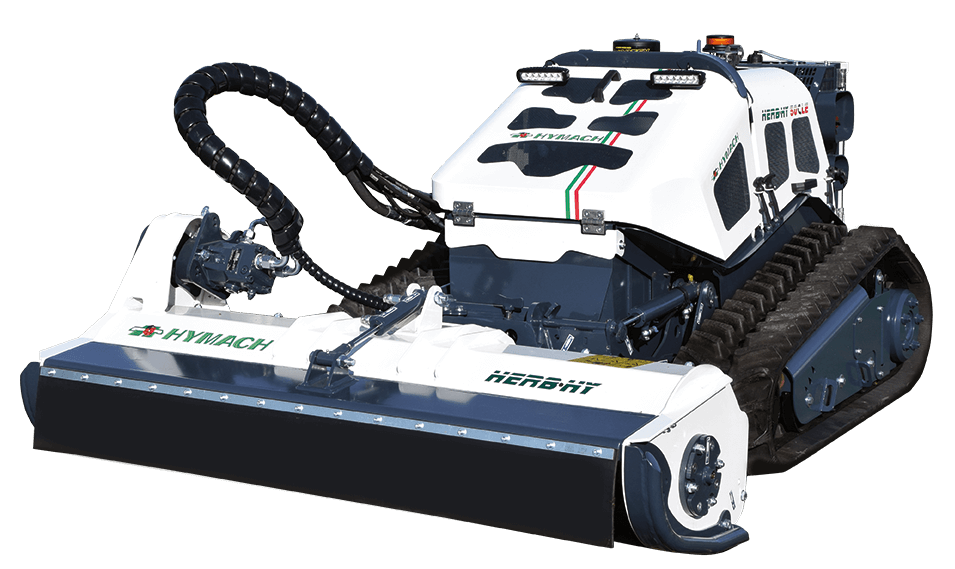

AUTOMOTIVE ROBOT BY RADIO CONTROL HYMACH HERBY-HY 50C LE COMPACT

We present the incredible HYMACH HERBY-HY 50C COMPACT, a true powerhouse in terms of power but always with compact dimensions. This radio-controlled implement carrier vehicle is the perfect choice for tackling the heaviest jobs with efficiency and reliability.

With a Perkins 3-cylinder industrial diesel engine, the HERBHY 50 C offers an impressive power of 49 HP, delivering maximum performance in all tasks. Its robustness and quality ensure consistent and reliable work in any situation.

Furthermore, the stability and traction of this vehicle on difficult terrain are unmatched. With the possibility to adjust the wheel track to 500 mm and an incredible tilt of up to 55°, you can easily take on any challenge. Nothing will be able to stop the HERBHY 50 C in its path.

Another highlight is the solid roll-bar integrated into the chassis, which not only provides additional protection but also serves as an anchor point for connecting different implements. This means you can customize the HERBHY 50 C according to your specific needs and expand its capabilities for a variety of tasks.

If you are looking for a powerful, versatile, and reliable work partner, the HYMACH HERBY-HY 50 C is the right choice. Combining power, efficiency, and durability in a compact package, it will exceed all your expectations and take your work to a new level.

Introducing the Remote-Controlled Automotive Robot HYMACH HERBY-HY 50C LE COMPACT, model VRH-MP160 LE!

This incredible robot features the following technical characteristics:

Chassis:

- Car equipped with tracks containing 8 rollers.

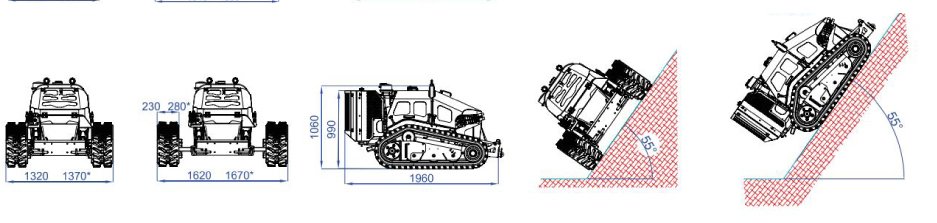

- Chassis width of 1370 mm, manually or hydraulically expandable up to 1670 mm.
- Automatic hydraulic tensioning of the tracks.
- Roll-bar hitch for lifting the machine.
- Roll-bar with high-visibility LED headlights.
- High-visibility LED warning light.
- Under-chassis coating for motor and system protection.

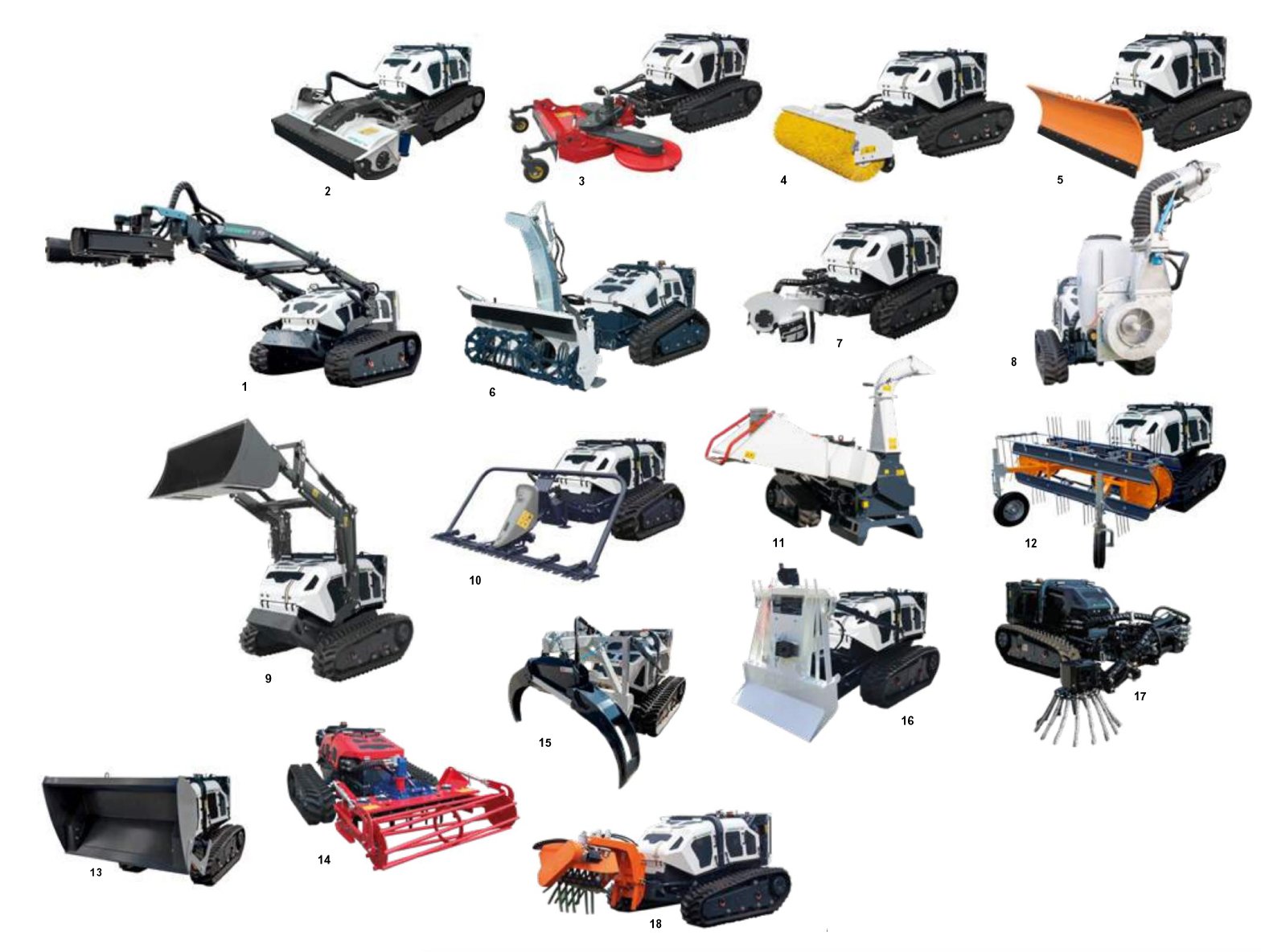

- Quick front hitch for tool exchange.

Thermal Engine:

- Equipped with a Perkins industrial 3-cylinder turbo diesel engine, with an approximate power of 49 HP, displacement of 1662 cc, compliant with Stage V regulations.
- Continuous maximum tilt of 55°.
- Cooling radiator cleaning system with reversible fan.
- Reinforced cooling radiator with coolant temperature control.
- Fuel tank with a capacity of approximately 24 liters.

Hydraulic System:

- Utilizes closed-circuit radial piston motors for forward movement.
- Features track locking system on the motors.
- Closed-circuit piston motor at the tool head.
- Variable-displacement piston pumps in closed circuit.
- Includes gear pump for services.
- Electro-hydraulic distributor for services.
- Electro-hydraulic distributor for the tool head function.
- Equipped with a reversible fan heat exchanger.
- Hydraulic oil tank with a capacity of approximately 25 liters.

Controls:

- Comes with a remote control with a graphical display.
- Adjustable forward and reverse speed from 0 to 7 km/h.
- Potentiometer for variable forward speed control from 0% to 100%.
- Potentiometer for forward direction correction (offset) during work on inclines.
- Track speed control on the display.
- Wired connection for remote control in emergency situations.
- Audible and visual alarm for exceeding tilt, system overheating, diesel engine overheating, engine oil pressure level alert, exceeding remote control communication radius, and reversal of direction commands.

Tracks:

- Equipped with high-grip rubber tracks, providing excellent traction.
